Backed by a full one year warranty. Reconditioned by AVO certified technicians! Test reports included. Ask us about getting store credit for your old unit! Custom configurations available upon request. The product image shown is for identification purposes only. The item you receive may have cosmetic differences unrelated to function. Such differences may include version, series, frame color or design, lid color or design, label material, label color, label modifications, service stamps, scuffs, scratches, etc.

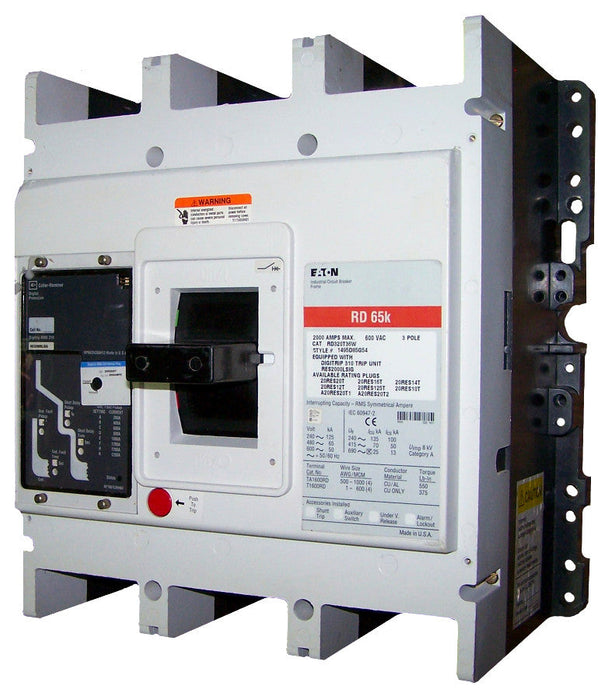

Specs are as follows: RD Frame Style, Molded Case Circuit Breaker, Electronic Non-Interchangeable Trip Unit(Digitrip RMS 310), 2500 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC.
(LS)Trip Unit Functions:
L-Adjustable Long Delay Pickup(By Adjustable Rating Plug)
S-Adjustable Short Delay Pickup with Fixed Short Delay Time(I2t Response) or Adjustable Short Delay Time(Flat Response)
