Backed by a full one year warranty. Reconditioned by AVO certified technicians! Test reports included. Ask us about getting store credit for your old unit! Custom configurations available upon request. The product image shown is for identification purposes only. The item you receive may have cosmetic differences unrelated to function. Such differences may include version, series, frame color or design, lid color or design, label material, label color, label modifications, service stamps, scuffs, scratches, etc.
Specs are as follows:

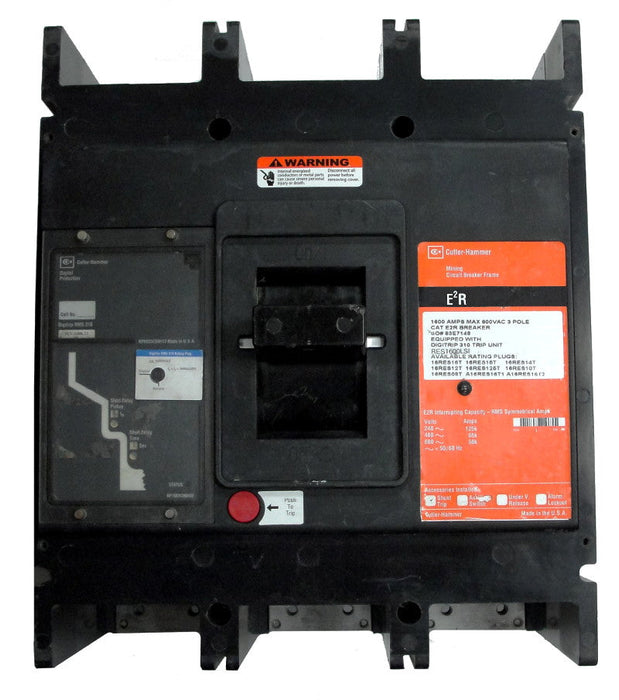

E2R Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Electronic Trip Unit, LS Trip Unit Functions, 2000 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC, Without Terminals Standard, A12 Option Includes: [2-A (Open) 2-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Right], U49 Option Includes: [110-127 VAC UVR Installed, Non LED, Right Pole Mounted, Exiting Right]
Specificationss
| Amperage | 2000 |
|---|---|
| Connection | Bolt On |
| Frame type | R |
| Interupting capacity rating | 125 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC |
| Manufacturer | Eaton / Cutler Hammer |
| Phase | 3 |
| Poles | 3 |
| Standard lug type | Without Terminals |
| Voltage max | 600 |
| Warranty | One Year |
