Backed by a full one year warranty. Ask us about getting store credit for your old unit! Custom configurations available upon request. The product image shown is for identification purposes only. The item you receive may have minor cosmetic differences unrelated to function. Such differences may include version, series, product label material, label color, and packaging.
Specs are as follows:

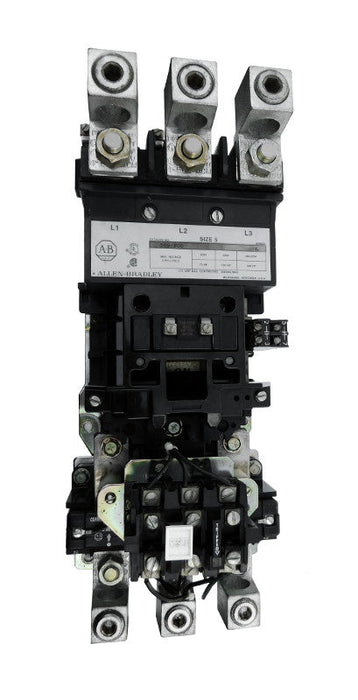

--Magnetic Motor Starter, NEMA Size 5, 270 Amps, 3 Poles, 440/480V AC Coil, Motor Voltage 575V AC Max, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 75 @ 200VAC, 100 @ 230VAC, 150 @ 415VAC, 200 @ 575VAC, Line and Load End Terminals Standard
Specificationss
Amperage | 270 |
---|---|
Coil type | Magnetic |
Coil voltage | 440/480 |
Manufacturer | Allen-Bradley |
Maximum rating | 75 HP @ 200VAC, 100 HP @ 230VAC, 150 HP @ 415VAC, 200 HP @ 575VAC |
Nema size | 5 |
Phase | 3 |
Poles | 3 |
Reversing or non reversing | Non-Reversing |
Standard lug type | Line and Load |
Voltage max | 575 |
Warranty | One Year |
