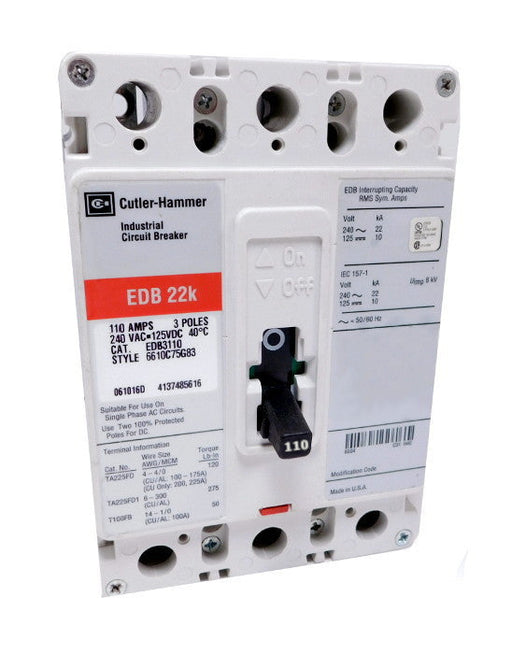

Backed by a full one year warranty. Reconditioned by AVO certified technicians! Test reports included. Ask us about getting store credit for your old unit! Custom configurations available upon request. The product image shown is for identification purposes unrelated to function. Such differences may include version, series, product label material, label color, and packaging.
Specs are as follows:
--EDB Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, VISI-TRIP Feature, 35 Ampere at 40 Degree Celsius, 3 Pole, 240 VAC, 480Y/277 VAC, Interrupting Ratings: 25 Kiloampere @ 240VAC, 18 Kiloampere @ 480Y/277 VAC, Load End Terminals Standard
Specificationss
| Amperage | 35 |
|---|---|
| Connection | Bolt On |
| Frame type | E |
| Interupting capacity rating | 25 Kiloampere @ 240VAC, 18 Kiloampere @ 480Y/277 VAC |
| Manufacturer | Square-D |
| Phase | 3 |
| Poles | 3 |
| Standard lug type | Load End Only |
| Voltage max | 480 |
| Warranty | One Year |
