Backed by a full one year warranty. Reconditioned by AVO certified technicians! Test reports included. Ask us about getting store credit for your old unit! Custom configurations available upon request. The product image shown is for identification purposes only. The item you receive may have cosmetic differences unrelated to function. Such differences may include version, series, frame color or design, lid color or design, label material, label color, label modifications, service stamps, scuffs, scratches, etc.
Specs are as follows:

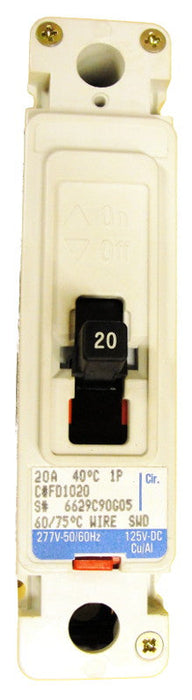

FD Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 20 Ampere at 40 Degree Celsius, 1 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 25 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC, Line and Load End Terminals Standard.
Specificationss
| Amperage | 20 |
|---|---|
| Connection | Bolt On |
| Frame type | F |
| Interupting capacity rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC |
| Manufacturer | Eaton / Cutler Hammer |
| Phase | 1 |
| Poles | 1 |
| Standard lug type | Line and Load |
| Voltage max | 600 |
| Warranty | One Year |
