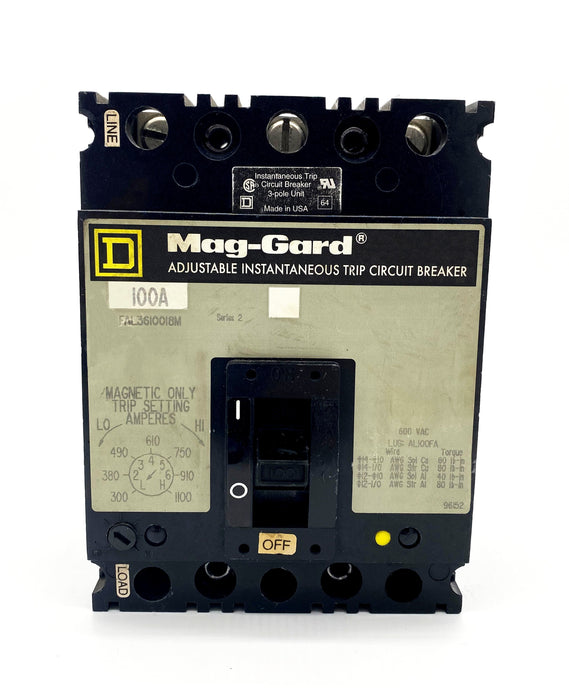

Backed by a full one year warranty. Reconditioned by AVO certified technicians! Test reports included. Ask us about getting store credit for your old unit! Custom configurations available upon request. The product image shown is for identification purposes unrelated to function. Such differences may include version, series, product label material, label color, and packaging.
Specs are as follows:
--FAL Frame Style, Molded Case Circuit Breaker, Magnetic Only Non-interchangeable Instantaneous Trip Unit, Motor Circuit Protection, 100 Ampere at 40 Degree Celsius, 3 Pole, Line and Load End Terminals Standard
Specificationss
| Amperage | 100 |
|---|---|
| Connection | Bolt On |
| Frame type | F |
| Interupting capacity rating | 25 Kiloampere @ 240 VAC, 18 Kiloampere @ 480 VAC, 14 Kiloampere @ 600 VAC, 10 Kiloampere @ 250 VDC |
| Manufacturer | Square-D |
| Phase | 3 |
| Poles | 3 |
| Standard lug type | Line and Load End Standard |
| Trip setting | 300-1100 |
| Voltage max | 600 |
| Warranty | One Year |
