Backed by a full one year warranty. Reconditioned by AVO certified technicians! Test reports included. Ask us about getting store credit for your old unit! Custom configurations available upon request. The product image shown is for identification purposes only. The item you receive may have cosmetic differences unrelated to function. Such differences may include version, series, frame color or design, lid color or design, label material, label color, label modifications, service stamps, scuffs, scratches, etc.
Specs are as follows:

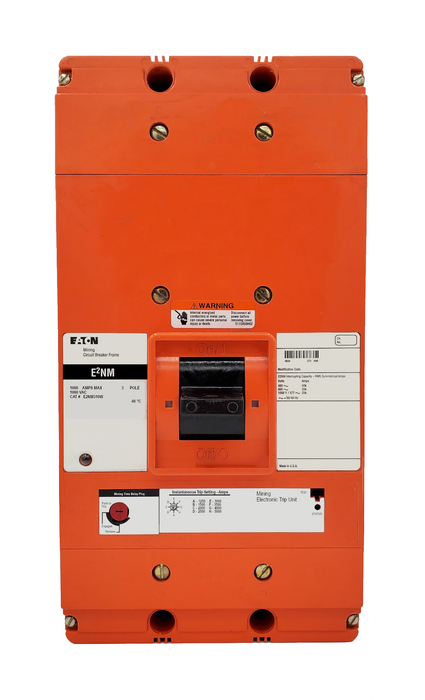

E2NM Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Thermal-Magnetic Trip Unit, 1000 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 25 Kiloampere @ 1000VAC, Without Terminals Standard.
Specificationss
| Amperage | 1000 |
|---|---|
| Connection | Bolt On |
| Frame type | N |
| Interupting capacity rating | 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 25 Kiloampere @ 1000VAC |
| Manufacturer | Eaton / Cutler Hammer |
| Phase | 3 |
| Poles | 3 |
| Standard lug type | Without Terminals |
| Voltage max | 1000 |
| Warranty | One Year |
