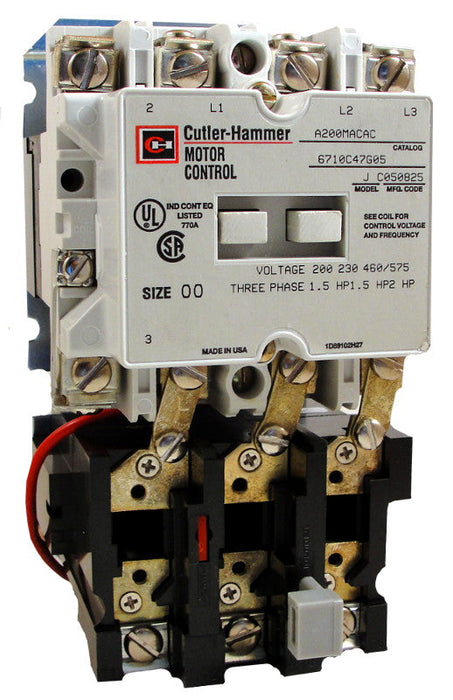

Backed by a full one year warranty. Ask us about getting store credit for your old unit! Custom configurations available upon request. The product image shown is for identification purposes only. The item you receive may have minor cosmetic differences unrelated to function. Such differences may include version, series, product label material, label color, and packaging.
Specs are as follows:
--Magnetic Motor Starter, Nema Size 1, 27 Amps, 3 Poles, 240VAC Coil, Full Voltage 600VAC, Type B Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 2 @ 115V/1 Phase, 7 1/2 @ 208V/3 Phase, 7 1/2 @ 240V/3 Phase, 10 @ 480V/3 Phase, 10 @ 600V/3 Phase
Specificationss
| Amperage | 27 |
|---|---|
| Application | Full Voltage |
| Coil type | Magnetic |
| Coil voltage | 240V AC Standard (505C806G12) |
| Manufacturer | Eaton / Cutler Hammer |
| Maximum rating | 2 @ 115V/1 Phase, 7 1/2 @ 208V/3 Phase, 7 1/2 @ 240V/3 Phase, 10 @ 480V/3 Phase, 10 @ 600V/3 Phase |
| Nema size | 1 |
| Phase | 3 |
| Poles | 3 |
| Reversing or non reversing | Non-Reversing |
| Standard lug type | Line and Load |
| Voltage max | 600 |
| Warranty | One Year |
